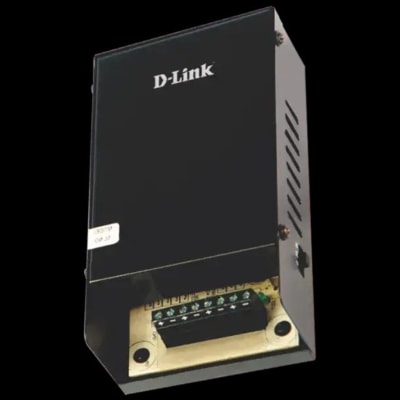

D LINK 4 CHANNEL CCTV POWER SUPPLY | DPS-F1B04

KEY FEATURES • Highly Efficient & Consumes Low Power • Stabilized Output, Low Interference, Surge Protected • Provision of 4 Channel Connectivity with LED Indicators . • In-built power cord with 3 Pin Plug • Highly Integrated SMPS Switcher IC Design • Insulated Cabinet Protection • Short Circuit Auto Restart • Input Voltage Range -100VAC-265VAC 50/60Hz • Output Voltage - 12V ± 5% DPS-F1D04 4 CHANNEL CCTV PowerSupply POWER SUPPLY Channel 4CH Model DPS-F1D04 Input Voltage Range 100VAC(Min)~265VAC (Max) Frequency 50Hz - 60Hz Output Voltage 12V  5% Output Current 1A per channel (Max) Line Regulation ≤ 5% Setup Rise Time ≤ 5S Hold-up Time 30mS Inrush Current < 50A Leakage Current <0.25mA Auto Reset Yes, During overload and short circuit Overload Protection Auto restart Yes Ripple ≤200mV Surge Protection 3KV Efficiency ≥ 68% Input Nominal Voltage 150VAC-240VAC Housing ABS White Store Temperature -20° to +80° C ambient Working Humidity 10 ~ 90% Working Temperature 0ºC to +50ºC Dimension 153 mm X 98.4 mm X 38.8 mm
