APC Switched Rack PDU (Power Distribution Unit), model AP9565

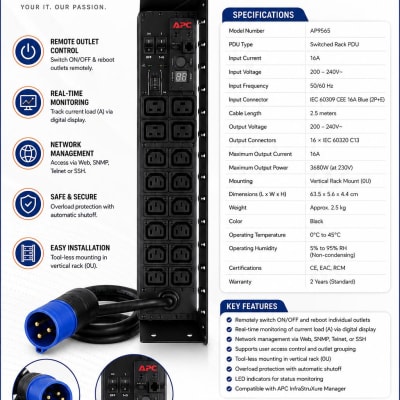

This is a product specification sheet for an APC Switched Rack PDU (Power Distribution Unit), model AP9565. Essentially, this is a high-grade power strip used in server racks. It allows IT administrators to monitor power usage and remotely turn individual outlets on or off. Core Specifications Feature Detail Model AP9565 Capacity 16A Input Voltage 200 - 240V Outlets 16 x IEC 60320 C13 Input Connector IEC 60309 CEE 16A (Blue plug) Form Factor 0U Vertical Rack Mount (doesn't take up horizontal rack space) Key Capabilities Remote Management: You can reboot hung servers or shut down unused equipment via a web interface, SNMP, or SSH. Real-Time Monitoring: Features a digital display that shows the total current draw (in Amps) to help prevent circuit overloads. Safety: Includes built-in overload protection with an automatic shutoff feature. Easy Setup: Designed for tool-less mounting in standard server cabinets. This device is primarily designed for data centers, server rooms, and network closets where remote power control is critical. Would you like to know more about its compatibility with specific server racks or how to set up its network management features? AI can make mistakes, so double-check responses APC Switched Rack PDU (Power Distribution Unit), model AP9565. The APC AP9565 is a basic, single-phase Power Distribution Unit (PDU) designed for server racks and data centers. It provides reliable power distribution with 12 IEC 60320 C13 outlets in a compact 1U rack-mountable form factor. Key Specifications Capacity: 16A maximum input current. Power Load: 3.7 kW at 230V or 3.3 kW at 208V (3680 VA total capacity). Voltage: 200V, 208V, or 230V nominal input/output. Connections: Features an IEC 60320 C20 input plug and a 2.5-meter (8.2 ft) power cord. Mounting: Supports both horizontal (occupies 1U space) and vertical (0U) mounting in standard 19-inch racks. Configuration & Setup Networking: For remote management, the PDU may require an embedded or secondary Network Management Card (NMC). Initial network configuration (IP, subnet, gateway) can be done via the Device IP Configuration Wizard or terminal emulation using a serial console connection (940-0299 or micro-USB cable depending on the card version). Safety Features: Includes resettable circuit breakers to quickly recover from overload events.
